Specifications
General
Weight Capacity 325 Lbs
Maximum Speed 4.00 MPH
Operating Range 18.00 Miles
Turning Radius 37.5"
Ground Clearance 4″ (Under Deck)
Drive Wheels Rear
Colors Blue, Red
Freewheel Mode Yes
Charger Off Board
Controller 50 Amp
Battery 2-12AH
Electronic Speed Control Yes
Electro-Mechanical Brakes Yes
Dimensions
Width 20.00 Inches
Length 41.00 Inches
Deck to Top of Seat 16.5″-18″
Ground to Top of Deck 5.5″
Ground to Top of Seat 22.25″-23.75″
Front Axle to Rear Axle 31.5″
Number of Seat Height Positions 3
Height (ground to top of seat back) 34.25″-35.75″
Size of Increments .75"

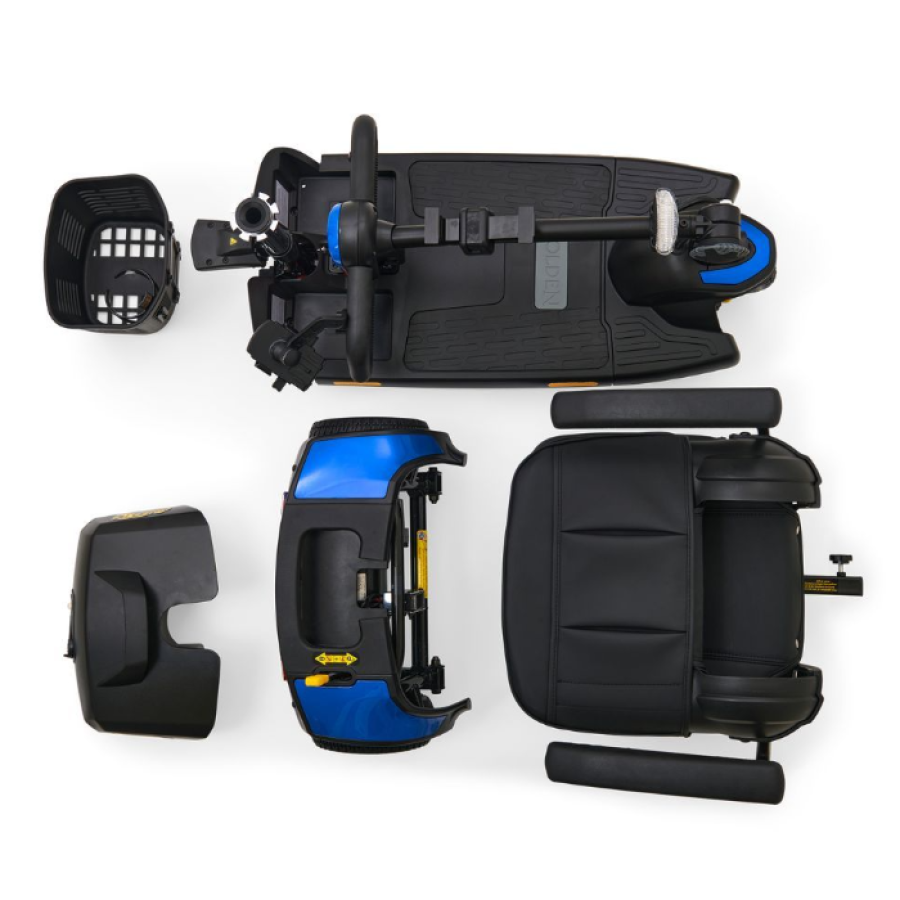

Weight
Assembled 100.00 Lbs
Base 83 lbs
Heaviest Piece 32 lbs
Without Batteries 83 lbs
Front Half 35 lbs
Rear Half 28 lbs
Seat w/Arms 21 lbs
Battery 2-12AH
Tires
Tire Type Solid/Low Profile
Rear 8″
Front 7.5″
Rear Anti-Tippers 2″
Seat
Color Black Vinyl
Width x Depth 17″ x 14.5″
Back Height - no headrest 14.75″
Warranty
Frame Lifetime
Drive Train 2 years
Battery 1 year
Electronics 2 years
