Specifications
General
Weight Capacity 325 Lbs
Maximum Speed 4.70 MPH
Operating Range 18.00 Miles
Turning Radius 39"
Ground Clearance 3.5″ (Under Deck)
Drive Wheels Rear
Colors Blue, Red
Freewheel Mode Yes
Charger Off Board
Controller 50 Amp

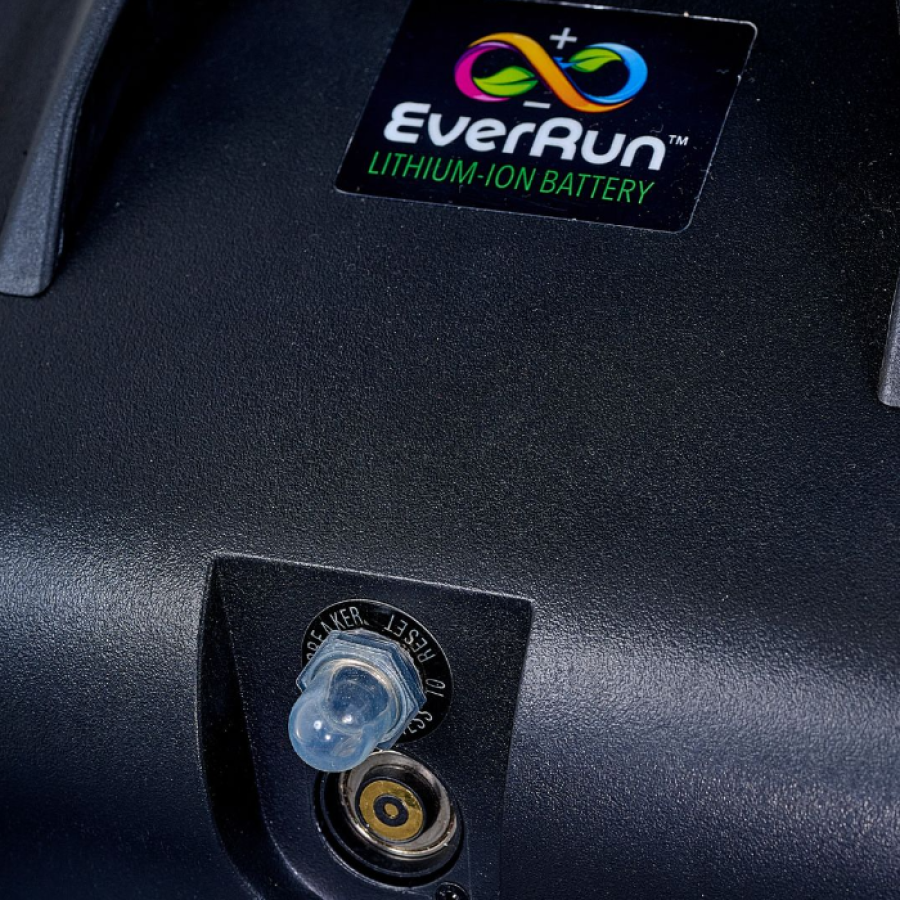

Battery 12AH 24V Lithium-Ion
Electronic Speed Control Yes
Electro-Mechanical Brakes Yes
Dimensions
Width 22.00 Inches
Length 42.00 Inches
Deck to Top of Seat 14.5″-16.5″
Ground to Top of Deck 6″
Ground to Top of Seat 21.5” – 23.5”
Front Axle to Rear Axle 30.6″
Number of Seat Height Positions 3
Height (ground to top of seat back) 35.5″-37.5″
Size of Increments 1”
Weight
Assembled 97.00 Lbs
Base 90 lbs.
Heaviest Piece 42.5 lbs.
Without Batteries 90 lbs.
Front Half 42.5 lbs.
Rear Half 28 lbs.
Seat w/Arms 16 lbs.
Battery 12AH 24V Lithium-Ion
Tires
Rear 8″
Front 8″

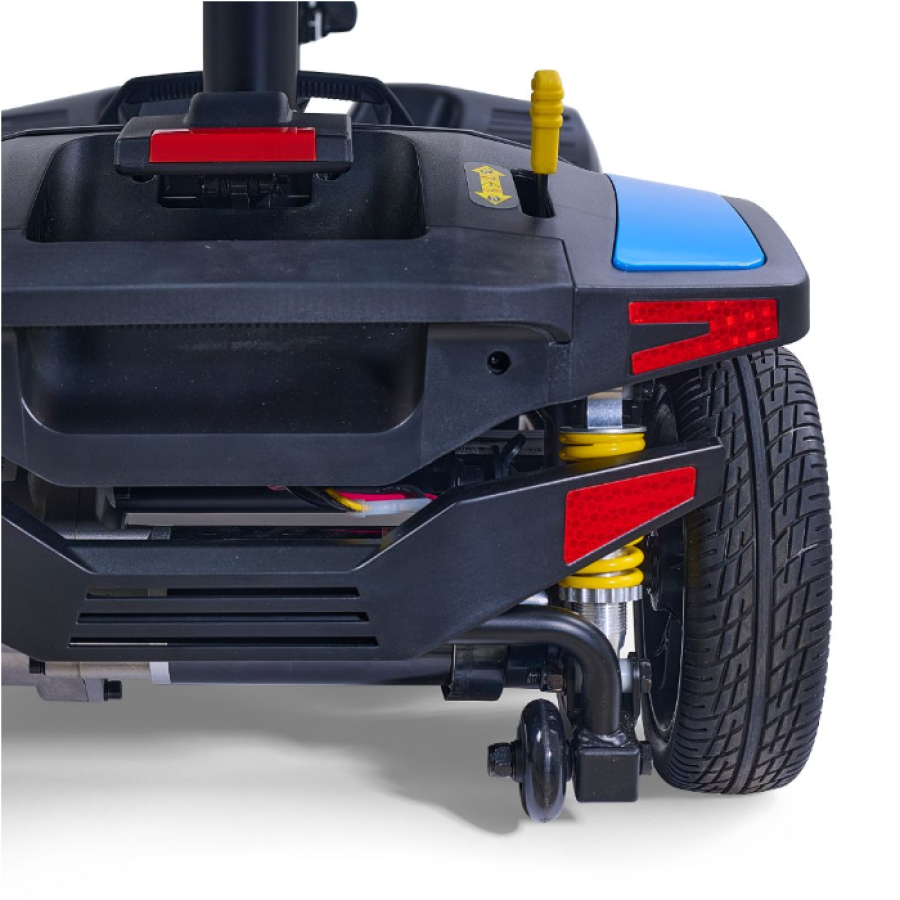

Rear Anti-Tippers 2″

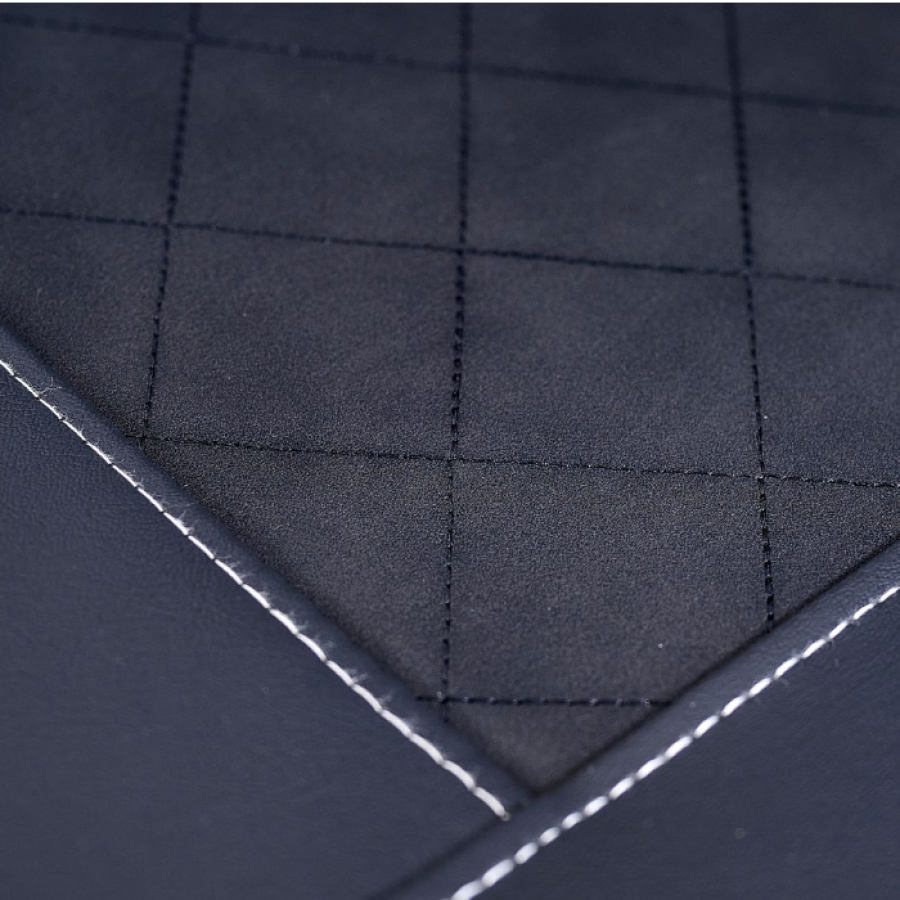

Seat
Color Black
Width x Depth 16″W-15.5″D
Back Height - no headrest 17″
Height from ground 35.5″-37.5″
Warranty
Frame Lifetime
Drive Train 2 years
Battery 1 year
Electronics 2 years
